新和不鏽鋼碼片生產已取得 ISO 9001 認證
Production of Stainless Steel Bracket
has been accredited the standard of ISO 9001
|
| |
 |
| |
Standard: ISO9001:2015
Cert. no. : Q0297 |
|
ISO 9001 證書樣本下載
ISO 9001 Certificate Download
如需正本，請聯絡我們。
Please contact us if you need the true copy |
 |
SW-FP FIT PLATE
Fit
Plate Stone Fixing Method
| Traditional T-Bracket
Fixing Method |
|
|
| The fold angle may not guarantee is 90°
and the fold angle may form a bigger gap between
stone panel. |

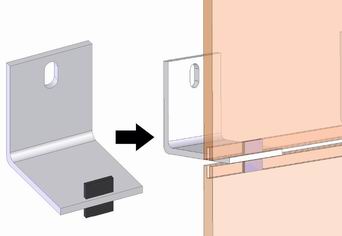

SW-FT
Fit Plate Fixng Method - For
Stone Facade Installation
|
|
|
| Ensure all the S.S. Pin are vertical ,in
good shape and hold tight in the bracket,
also it has more contact surface than the
original T-Bracket. |

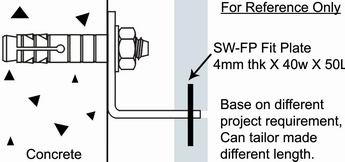

Example for insert SW-FP Fit Plate into
the drawing.
|
|
 |
|
 |
| 產品規格
: |
| SW-FP Fit Plate |
| 物料 |
S.S. 304 / S.S.316 |
| 厚度 |
3mm to 6mm |
| 尺寸 |
根據客戶要求 |
|
|
| |
|
 |
|
