- Saving time and human resource by operated
the electric.
- Faster than manual bending machine about
two times.
- Manual bending machine need about 40 second
but the electric just need about 15 second.
Overall Dimension：
Width: 400 mm
Depth: 460 mm
High: 1100 mm
The maximum Insert
bracket width: < 220 mm
Technical reference :
The max. loading stress: 216 bar Power voltage:
220V / 110V
Weight : 130 kg
The max.
Insert bracket width: < 220 mm
Oil contactor volume: 20 L
The range of the thickness bending bracket:
2 – 6 mm

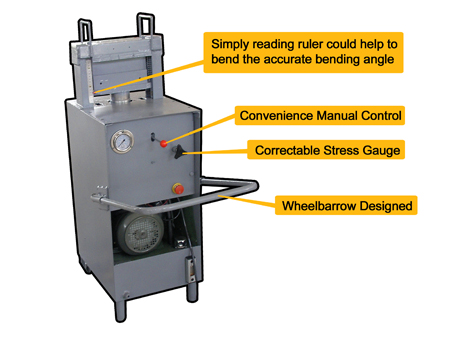

Portable Electric Bending Machine
