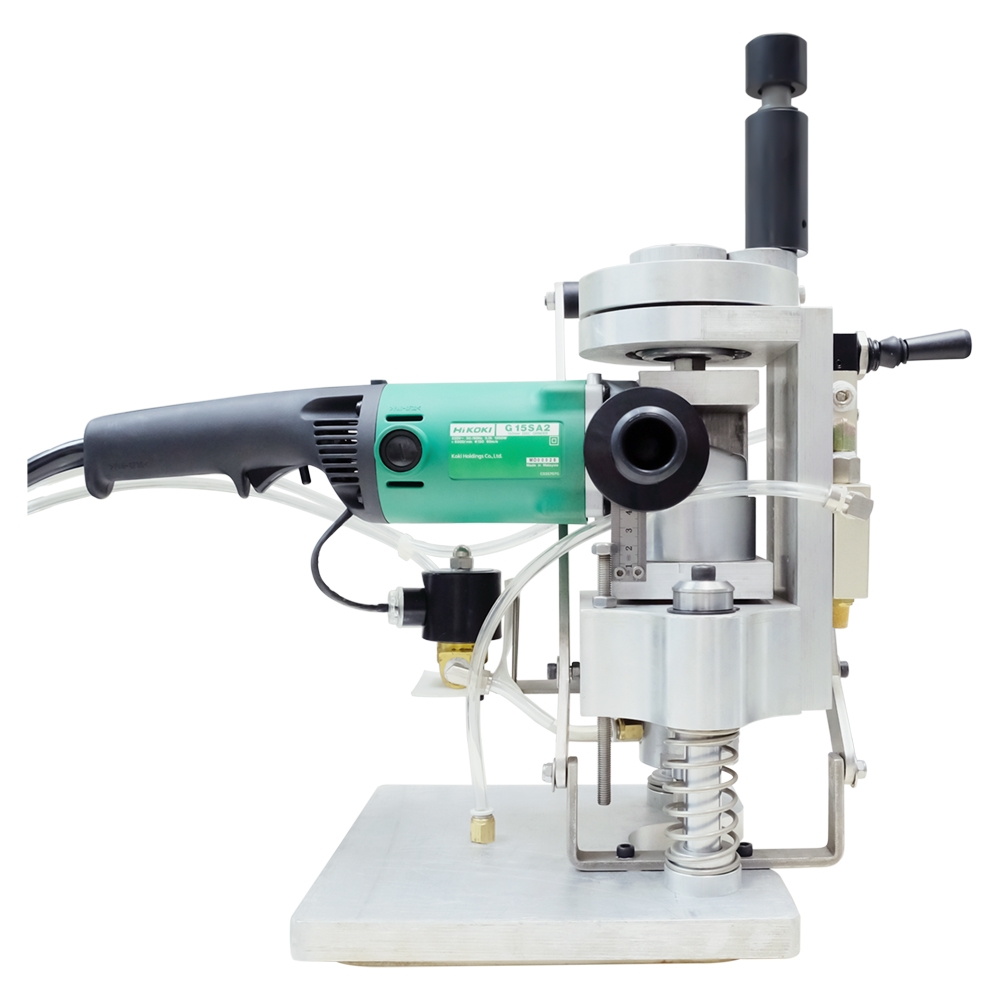

SW-UDM5 Comprehensive Portable Stone Back Anchor Drilling Machine
SUNWAY SW-UDM5 Comprehensive Portable Stone Back Anchor Drilling Machine is specifically designed for SUNWAY SW-BA Stone Back Anchor Installation
Applicable for drilling and enlarging holes on the backside of various natural stone panels, ranging from marble, limestone, granite, ceramic or high density cement board, with a view to collaborating with any dry installation of diverse front facade such as natural stone facade and ceramic facade
Features:
- Drilling and enlarging holes for SW-BA stone back anchor are carried out in simple process and by only one machine
- By using the principle of vacuum-pumping, drill hole’s position could be fixed during the process of drilling and enlarging
- The drill holes could be guaranteed in a precise and consistent symmetric shape
- Small Size, Portable, Easy to operate
Toggle Content
Toggle Content

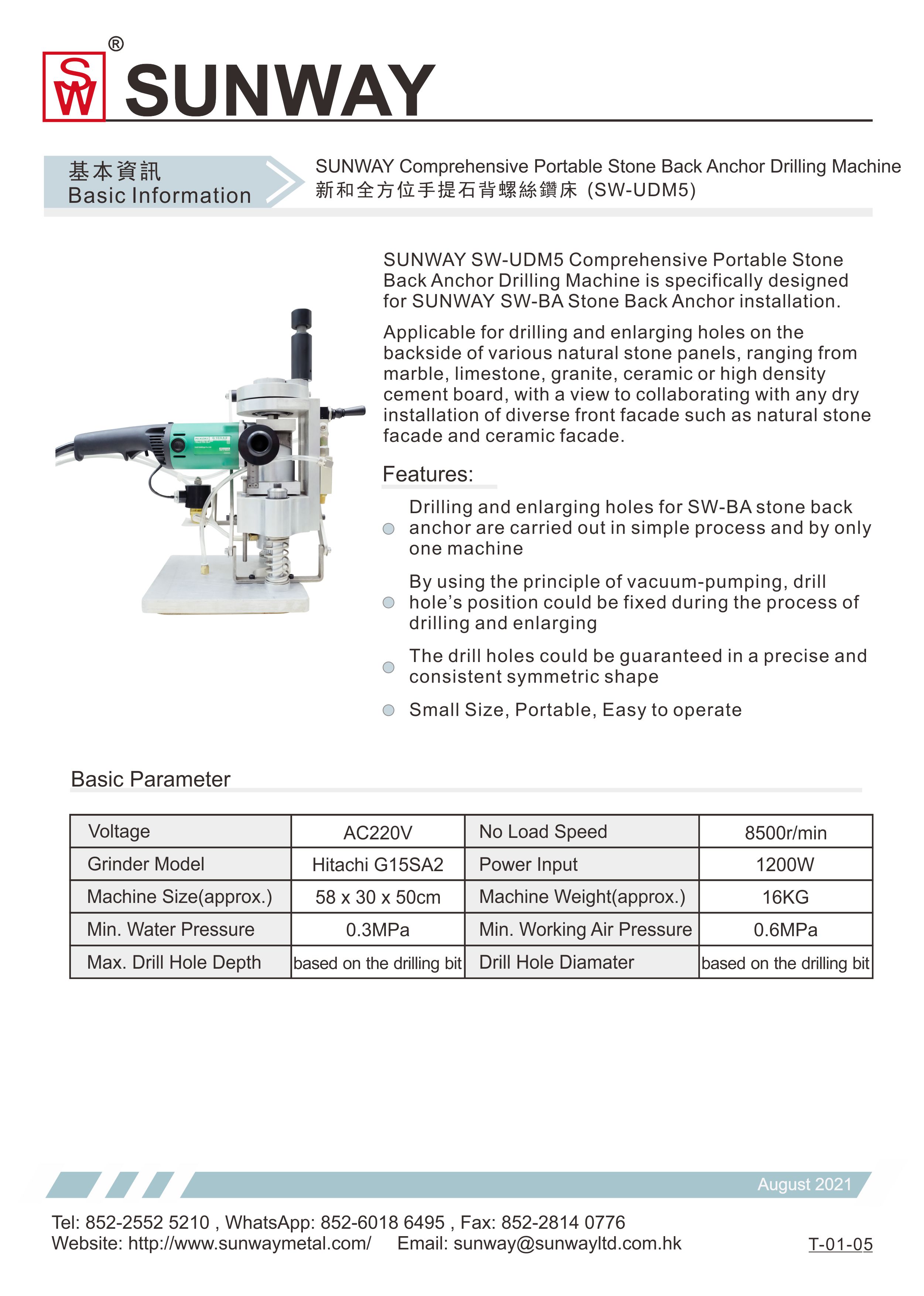

- SW-UDM5 Comprehensive Portable Stone Back Anchor Drilling Machine Catalogue (English Version)
- SW-UDM5 Comprehensive Portable Stone Back Anchor Drilling Machine Catalogue (Traditional Chinese Version)
- SW-BA Stone Back Anchor Installation Movie
- SW-UDM-5 Operation Movie (Technical Reference: No material thickness limitation)
- SW-UDM-5 Vacuum Pump Tube Details (Technical Reference: No material thickness limitation)
- SW-UDM-1 Operation Movie
- SW-UDM-4 Operation Movie
